商品の詳細:
|
| モデル番号: | GJFJV-B-001 | 製品名: | 12の中心の光ファイバーケーブル |
|---|---|---|---|
| モデル: | 単信 | ジャケット材料: | LSZH/PU/PVC |
| ケーブル タイプ: | Aramidヤーンが付いている堅い緩衝Biber | 防火効力のある: | はい |
| Oem: | 利用できる | 適用: | Patchcordのピグテール |
| ハイライト: | 24の繊維の単モード光ケーブル,単モードOS2繊維ケーブル,GJFJV OS2繊維ケーブル |
||
Description:

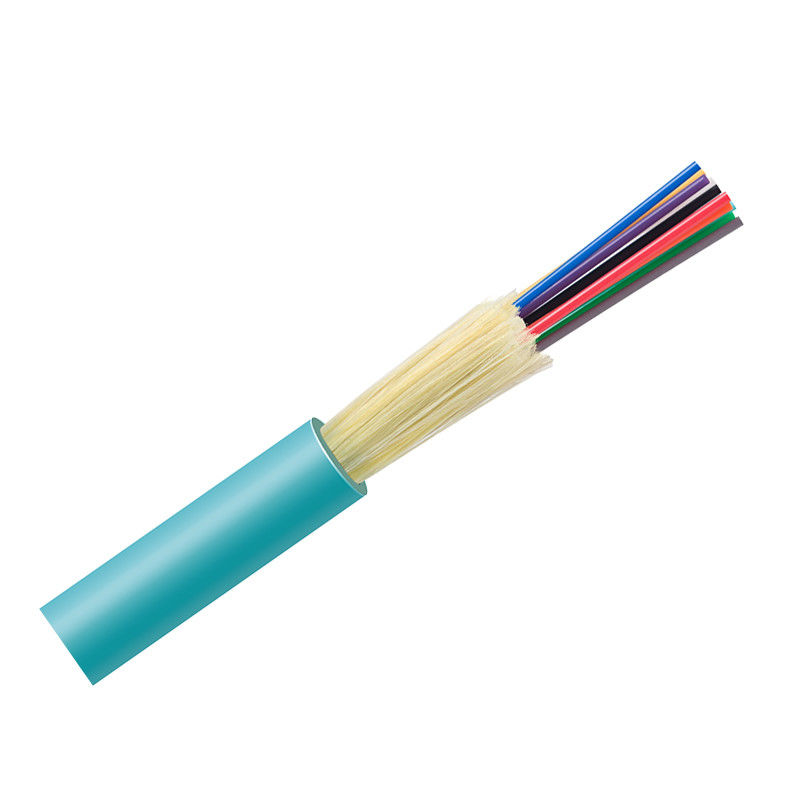

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.
Standards:
Products Features:
Optical Characteristics:
| G.652D | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | |||
| @1550nm | ≤0.22 dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | |||
Cable diameter:
| MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 | |
| Cable Diameter(mm) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 6.2±0.25 | 6.5±0.25 | 6.8±0.25 |
| Cable Weight(kg/km) | 12 | 20 | 24 | 29 | 32 | 35 |
| Tight Buffer Fiber Diameter |
900±50μm |
|||||
Mechanical Characteristics:
| Tensile Strength | Long Term | 80N | 60 | 50 |
| Short Term | 150N | 120 | 100 | |
| Crush Resistance | Long Term | 100N/100mm | 100N/100mm | 100N/100mm |
| Short Term | 500N/100mm | 500N/100mm | 500N/100mm | |
| Bending Radius | Dynamic | 20XD | 20XD | 20XD |
| Static | 10XD | 10XD | 10XD |
